9S

True bass

The 9S takes the best from our past subs and refines the details to reach the highest level in the low end department.
ZNAJDŹ DILERA
UMÓW SIĘ NA ODSŁUCH

9S



True bass. The 9S subwoofer is designed to complement LYD and other Dynaudio Pro studio monitors, including the classic BM range.

Studio-quality components and construction make the 9S, with its double front baffle and brand-new 9in long-throw driver, the ideal subwoofer for your mixing and mastering projects. We made it a priority to make the 9S compact while ensuring that you get the utmost sonic accuracy. In terms of size, it resembles the BM 9S II that it replaces, but when it comes to performance, it’s actually more comparable to the larger BM 14S II.


The 9S will expand any studio monitor setup regardless of whether you’re working in stereo or surround. Its massive yet tight low-end takes the burden off your monitors – letting them focus on delivering the frequency range above 50-150Hz, depending on how you set the crossover filter.


A long-throw driver ensures the necessary movement to reproduce super low-end frequencies all the way down to 22Hz in great detail. Running the show is a 300W Class D amplifier module that significantly outperforms the previous BM 9S II.

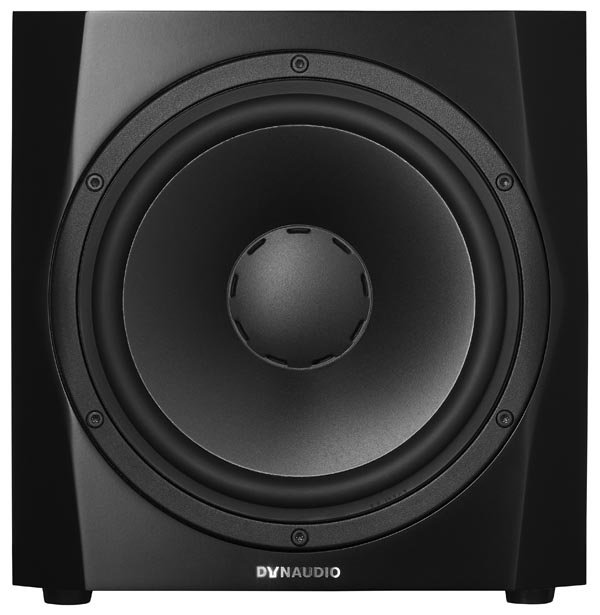

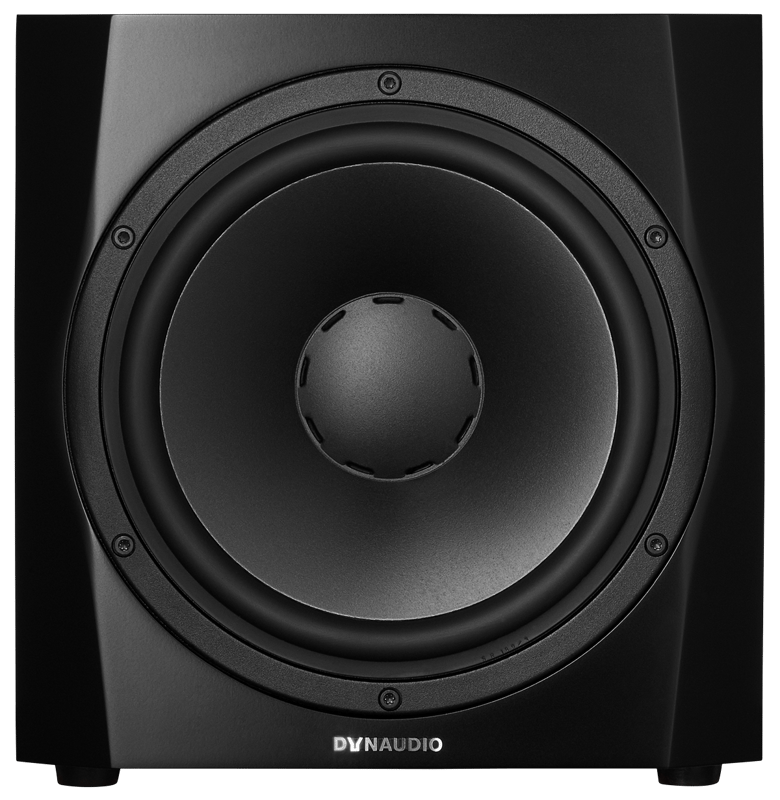

9S-front-black_1200x1200px

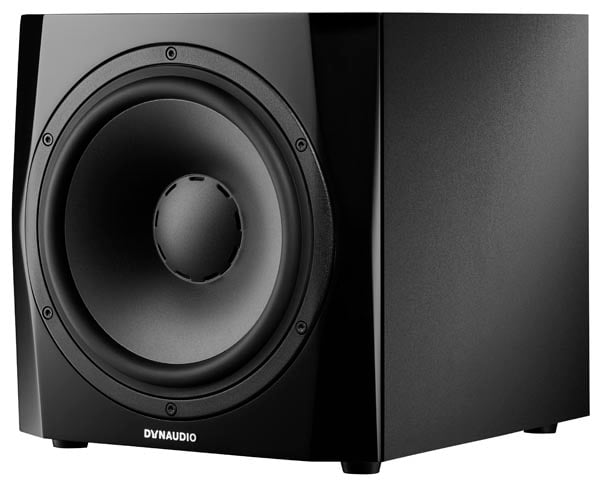

9S-halfprofile-black_1200x1200px

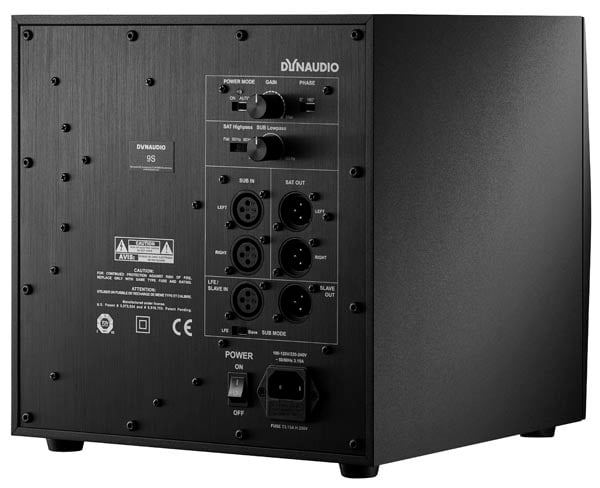

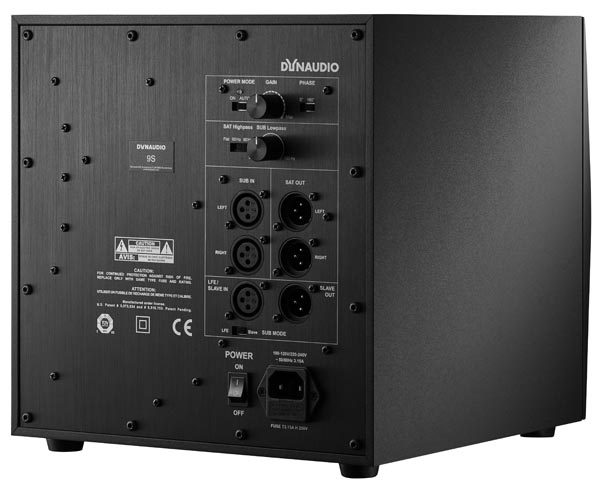

9S-back-black_1200x1200px

Subwoofery

Cechy

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

300-watt state-of-the-art Class D amplifier module

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

9in long-throw MSP woofer for accurate low-end frequency reproduction

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

22-175 Hz frequency range

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

Sealed, black-vinyl cabinet

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

37mm front baffle

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

Master/Slave feature for daisy-chaining multiple subwoofers

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

Adjustable lowpass filter to set the perfect crossover frequency

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

SAT output with defeatable highpass filter

9S

Specyfikacje

  • Status Aktualny
  • Segment Pro
  • Seria Subwoofery
  • Typ Subwoofer
  • Wejścia analogowe 1x XLR LFE, 2x XLR stereo
  • Wyjścia analogowe 1x XLR do głośnika klienta, 2x XLR SAT
  • Moc wzmacniacza (W) 300W
  • Wejście zasilania AC 100-120 V/200-240 V 50/60 Hz
  • Automatyczne włączanie/wyłączanie Tak
  • Pobór mocy w trybie gotowości (W) 0,5
  • Maksymalny pobór mocy (W) 350
  • Dolna granica częstotliwości (Hz @85 dB +/- 3 dB) 22
Zobacz więcej
Product-Lineart-Sub 9S

Find a dealer

Find your nearest Dynaudio dealer and pay them a visit today, or sign up for a listening session.

Search
Location Filter

    Seria Subwoofery

    • Status:
    • Segment:
    • Seria:
    • Typ:
    • Wejścia analogowe:
    • Wyjścia analogowe:
    • Moc wzmacniacza (W):
    • Wejście zasilania AC:
    • Automatyczne włączanie/wyłączanie:
    • Pobór mocy w trybie gotowości (W):
    • Maksymalny pobór mocy (W):
    • Dolna granica częstotliwości (Hz @85 dB +/- 3 dB):
    Zobacz więcej
    • 18S
    • Aktualny
    • Pro
    • Subwoofery
    • Subwoofer
    • 2x zrównoważone XLR, 2x niezrównoważone RCA fono
    • 2x zrównoważone XLR, 2x niezrównoważone RCA fono
    • 500W
    • 100-120 V/200-240 V 50/60 Hz
    • Tak
    • 0,5
    • 490
    • 16
    • 9S
    • Aktualny
    • Pro
    • Subwoofery
    • Subwoofer
    • 1x XLR LFE, 2x XLR stereo
    • 1x XLR do głośnika klienta, 2x XLR SAT
    • 300W
    • 100-120 V/200-240 V 50/60 Hz
    • Tak
    • 0,5
    • 350
    • 22
