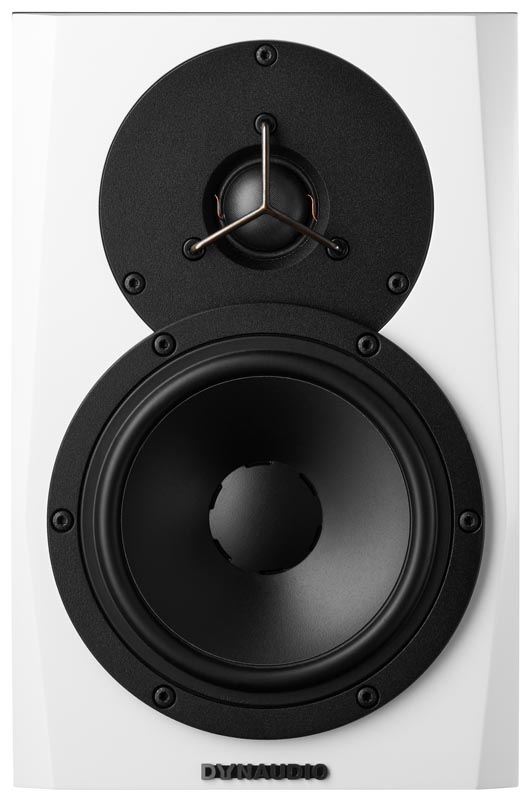

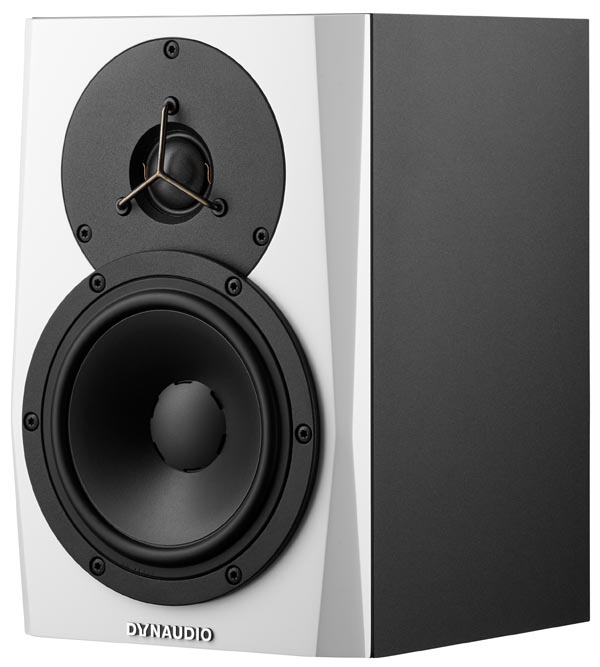

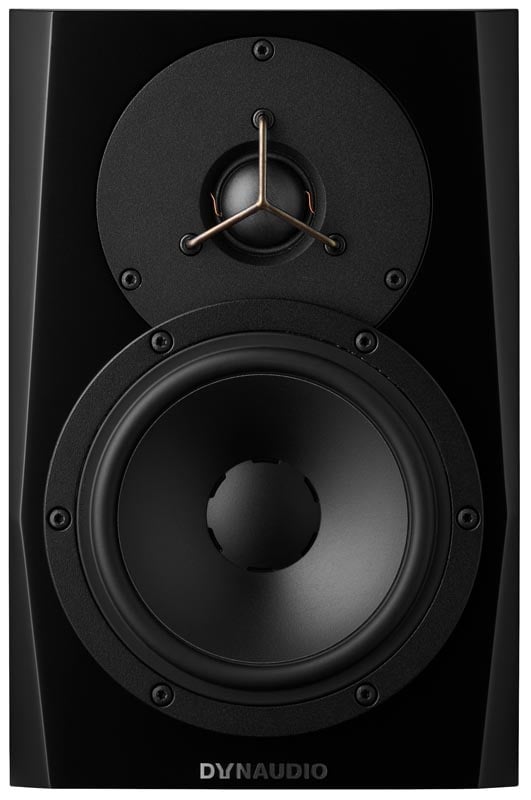

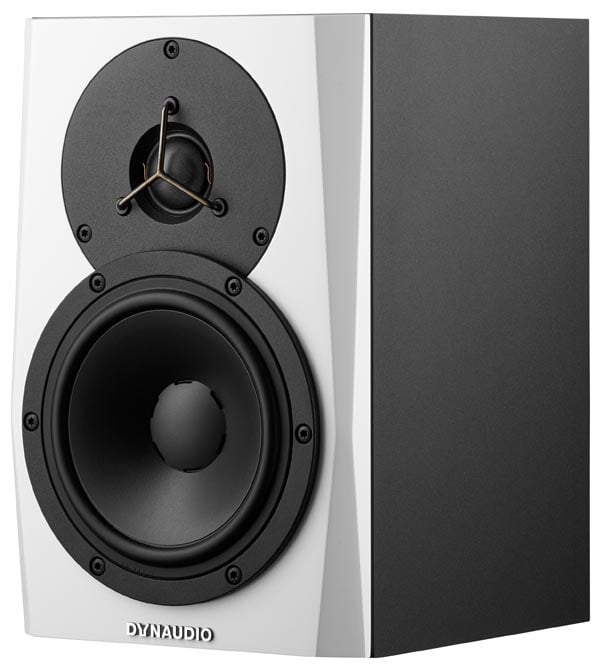

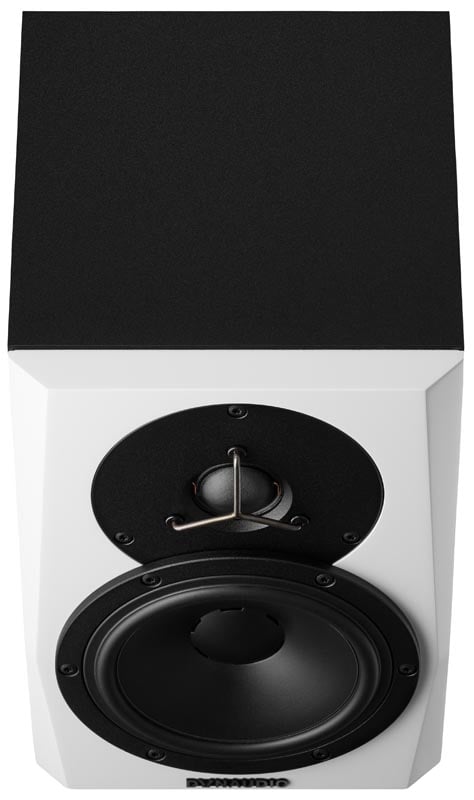

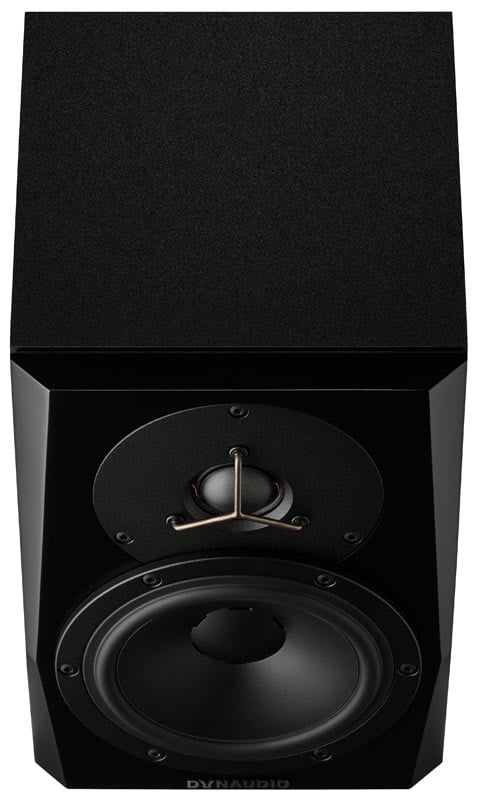

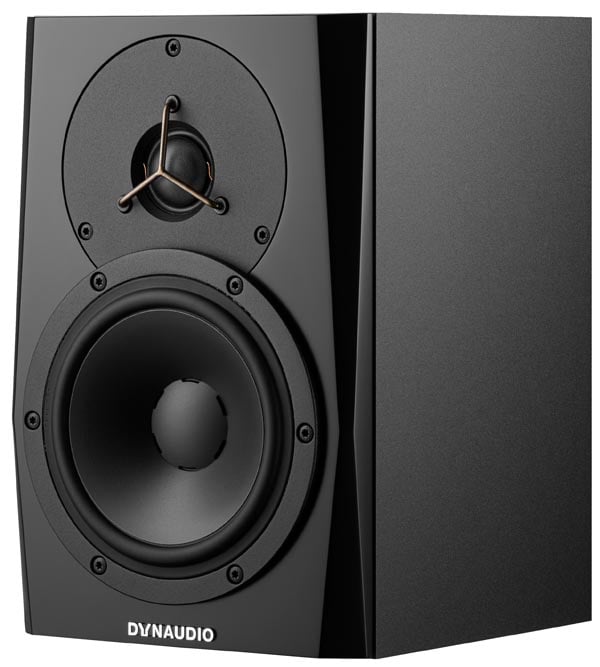

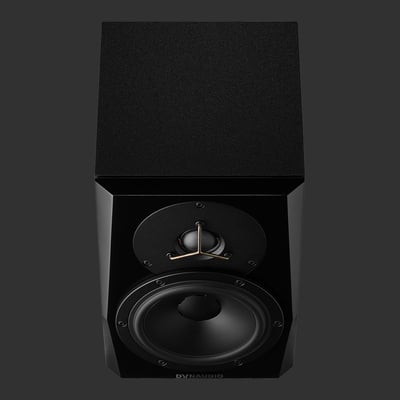

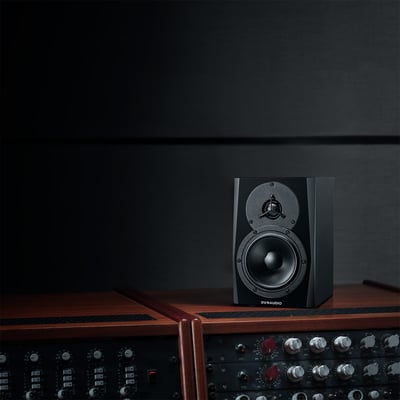

LYD 5

Compact nearfield personal monitors for incredible precision in smaller spaces – and even at low volumes.

LYD 5

Compact nearfield personal monitors for incredible precision in smaller spaces – and even at low volumes. The truth, the whole truth and nothing but the truth. Get the unvarnished truth and deliver your mixes exactly as the artist intended.

LYD 5, with its low-volume precision, is the ideal complement for any small studio set-up. It uses the same lightweight aluminium voice-coils in its handmade 5in MSP drive-units as our high-end hi-fi speakers, and pairs them with cutting-edge Class-D amplification as well as a 24-bit/96kHz signal path with advanced DSP.

LYD

Cechy

Nearfield Monitor with 5" Woofer

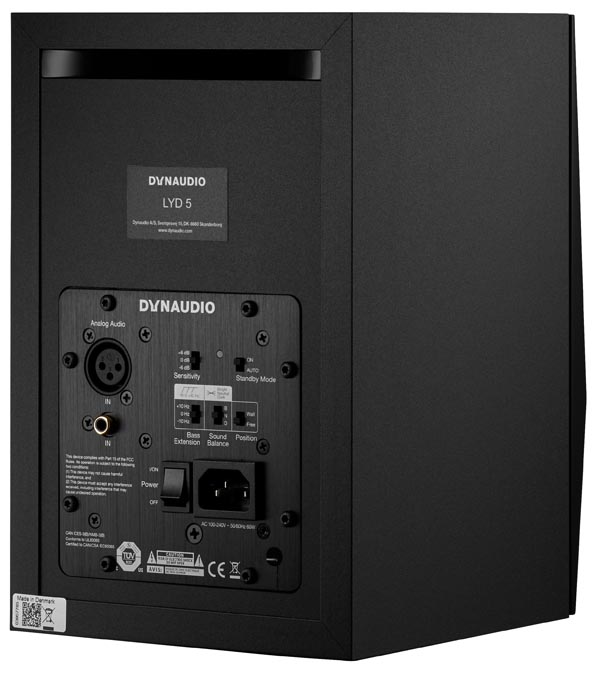

Bi-amped speaker design with 2 x 50W and state-of-the-art Class-D amplification

Bass extension to extend or curtail the low end frequency response

Two different tunings: one for free standing and one designed for speakers within 50 cm of wall

Sound balance to influence the overall response of the speaker

Made in Denmark

Status Aktualny
Segment Pro
Seria LYD
Typ Monitor bliskiego pola
Wejścia analogowe XLR, RCA
Maks. SPL (1m, para) 106
Moc wzmacniacza głośnika niskotonowego (W) 50
Moc wzmacniacza głośnika wysokotonowego (W) 50
Wejście zasilania AC 100-240V 50/60Hz
Pobór mocy w trybie gotowości (W) 0,5
Maksymalny pobór mocy (W) 100
Dolna granica częstotliwości (Hz @85 dB +/- 3 dB) 60
Górna granica częstotliwości (kHz @ 85dB +/- 3 dB) 21
Konstrukcja obudowy Bass-reflex z wylotem z tyłu
Zwrotnica 2-drożny procesor DSP
Częstotliwości podziału zwrotnicy (Hz) 5200 Hz
Głośnik wysokotonowy 1.1 cala soft dome
Głośnik średniotonowy/Głośniki niskotonowe 5in MSP
Waga kg 5,7
Szerokość mm 170
Wysokość mm 260
Głębokość mm 211
Głośniki w opakowaniu 1

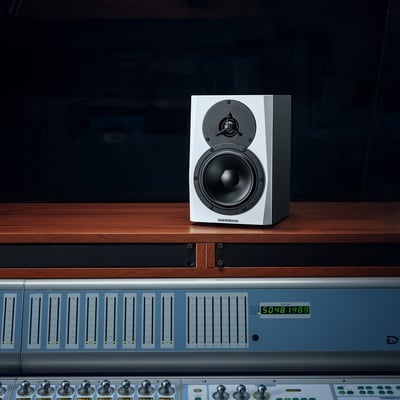

Wykończenia Black Satin, White Satin

Zobacz więcej

We believe monitors should sound great at all volume levels - low and high

Sebastian Rodens, Product Manager

Recenzje

Engineering Integrity Makes LYD Classy and Capable

"Both the LYD 5 and LYD 8 are classy and capable nearfield monitors invested with thoughtful electro-acoustic engineering. They look great, their performance is up there with the best in their class, and that they’re relatively affordable only increases their appeal. (…) If you asked me, and I’m sure you did, to come up with one phrase to describe my feelings about the LYD monitors it would be ‘engineering integrity’.”

Sound on Sound

Pro Tools Expert took the entire LYD studio monitor in for a detailed review. As James Ivey points out, each model shines in its own way and is ideal for significant purposes.

Pro Tools Expert LYD Review

German online magazine, Bonedo, reviewed all 3 LYD models. In short, they conclude that LYD preserves the classic Dynaudio virtues: The design is modern, the standard of craftsmanship is high and the sound is immaculate and very transparent.

German online magazine, Bonedo

Status:
Segment:
Seria:
Typ:
Wejścia analogowe:
Maks. SPL (1m, para):
Moc wzmacniacza głośnika niskotonowego (W):
Moc wzmacniacza głośnika średniotonowego (W):
Moc wzmacniacza głośnika wysokotonowego (W):
Wejście zasilania AC:
Pobór mocy w trybie gotowości (W):
Maksymalny pobór mocy (W):
Dolna granica częstotliwości (Hz @85 dB +/- 3 dB):
Górna granica częstotliwości (kHz @ 85dB +/- 3 dB):
Konstrukcja obudowy:
Zwrotnica:
Częstotliwości podziału zwrotnicy (Hz):
Głośnik wysokotonowy:
Głośnik średniotonowy:
Głośnik średniotonowy/Głośniki niskotonowe:
Głośniki niskotonowe:
Waga kg:
Szerokość mm:
Wysokość mm:
Głębokość mm:
Głośniki w opakowaniu:
Wykończenia:

Zobacz więcej

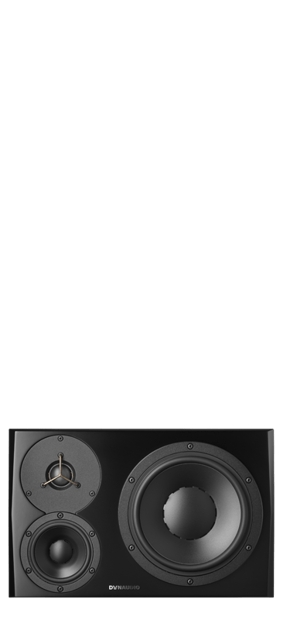

LYD 48
Aktualny
Pro
LYD
Monitor bliskiego pola
XLR, RCA
112
80
50
50
100-240V 50/60Hz
0,5
100
50
21
Bass-reflex z wylotem z tyłu
3-drożny procesor DSP
460/5500 Hz
1.1 cala soft dome
4in MSP
8 cala MSP
12
369
234
328
1
Black Satin, White Satin

LYD 8
Aktualny
Pro
LYD
Monitor bliskiego pola
XLR, RCA
112
80
50
100-240V 50/60Hz
0,5
100
55
21
Bass-reflex z wylotem z tyłu
2-drożny procesor DSP
3900 Hz
1.1in soft dome
8in MSP
10,2
234
369
328
1
Black Satin, White Satin

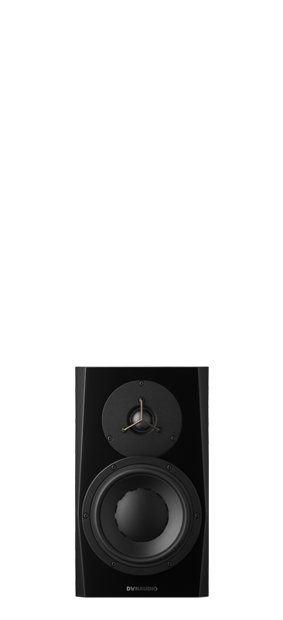

LYD 7
Aktualny
Pro
LYD
Monitor bliskiego pola
XLR, RCA
109
50
50
100-240V 50/60Hz
0,5
100
55
21
Bass-reflex z wylotem z tyłu
2-drożny procesor DSP
4300 Hz
1.1in soft dome
7in MSP
8
186
320
296
1
Black Satin, White Satin

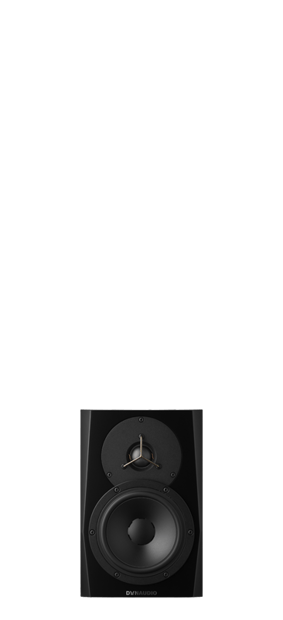

LYD 5
Aktualny
Pro
LYD
Monitor bliskiego pola
XLR, RCA
106
50
50
100-240V 50/60Hz
0,5
100
60
21
Bass-reflex z wylotem z tyłu
2-drożny procesor DSP
5200 Hz
1.1 cala soft dome
5in MSP
5,7
170
260
211
1
Black Satin, White Satin
