BM 15A
BM15A
The Dynaudio nearfield experience.
Introduction
BM15A. The Dynaudio nearfield experience.

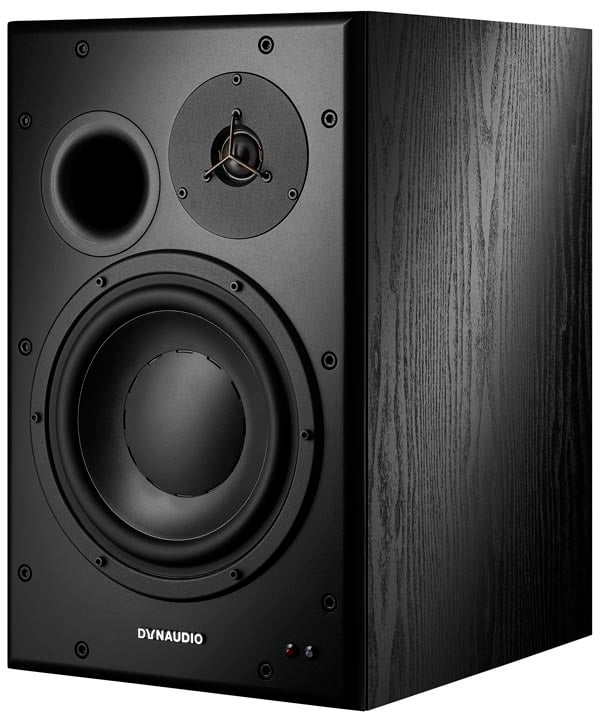

The BM15A is a relatively large 2-way active system comprising of a large 240mm (10") woofer, a special version of the Dynaudio ESOTEC soft dome tweeter and an electronic phase-aligned crossover, which feeds the build-in dual, high performance discrete MOSFET amplifiers.
The ESOTEC HF has a dynamic headroom of 1000W, and the 240mm (10") bass driver is world-renowned for its 100mm (4") aluminium alloy voice coil.

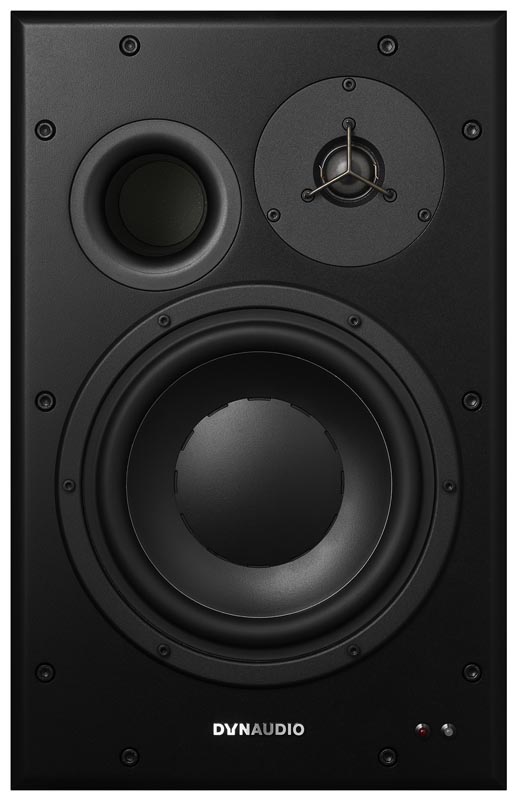

The BM15A monitor is front ported for powerful and extended low frequency response, and the elegant matte cabinet has radius edges on the front baffle to reduce boundary effects and improve the overall sound quality.



Classic BM Range
Cechy
Phase-aligned crossover
Handcrafted drivers with aluminum voice coils
Made in Denmark
BM 15A
Specyfikacje
- Stan Aktualny
- Segment Pro
- Seria BM
- Typ Monitor bliskiego pola
- Wejścia analogowe XLR
- Maks. SPL (1m, para) 124
- Moc wzmacniacza głośnika niskotonowego (W) 200
- Moc wzmacniacza głośnika wysokotonowego (W) 100
- Wejście zasilania AC 100-240V 50/60Hz
- Maksymalny pobór mocy (W) 300
- Dolna granica częstotliwości (Hz @85 dB +/- 3 dB) 40
- Górna granica częstotliwości (kHz @ 85dB +/- 3 dB) 21
- Konstrukcja obudowy Bass-reflex z wylotem z przodu
- Zwrotnica 2-drożna
- Częstotliwości podziału zwrotnicy (Hz) 1800 Hz
- Głośnik wysokotonowy 1800 Hz
- Głośnik średniotonowy/Głośniki niskotonowe 10in MSP
- Waga kg 18,6
- Waga lb 41
- Szerokość mm 290
- Wysokość mm 454
- Głębokość mm 388
- Szerokość cala 11 3/8
- Wysokość cala 17 7/8
- Głębokość cala 15 2/8
- Głośniki w opakowaniu 1

I really like the way they sound and I know I can trust what I hear. With them my mixes translate well every time
Roy Hendrickson, Studio Engineer
