M3XE
M3XE
For Mastering, Tracking and Mixing. Quad – amped.
Introduction

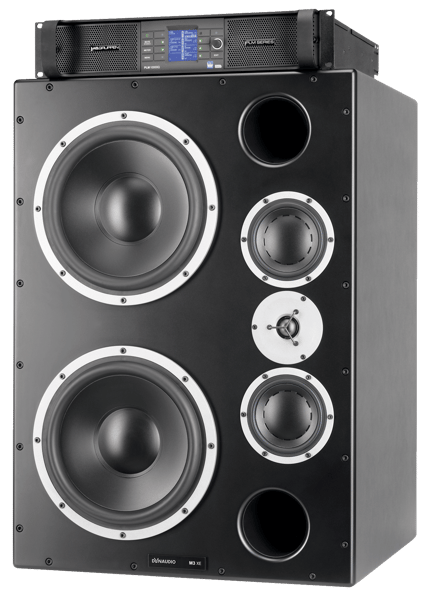

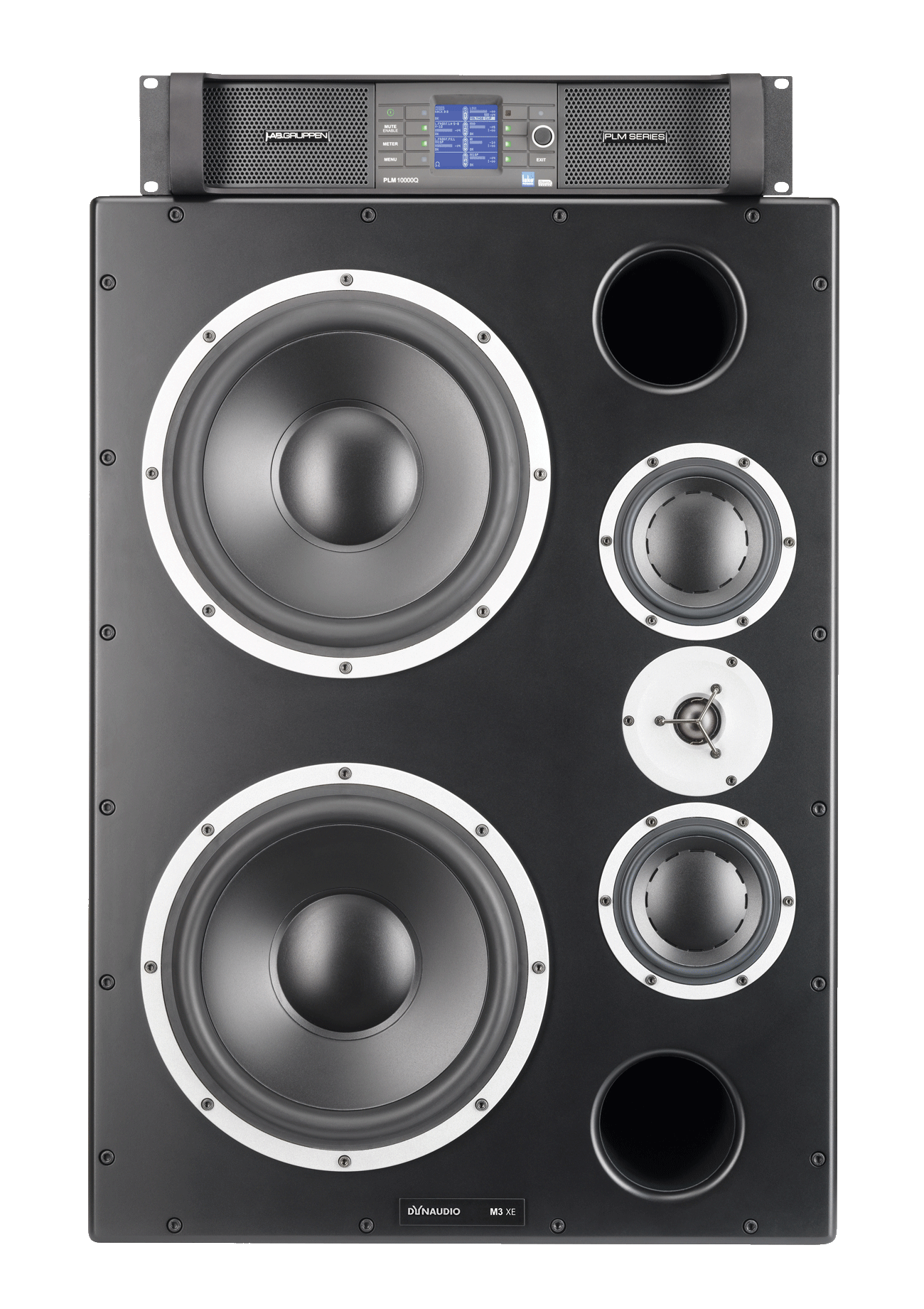

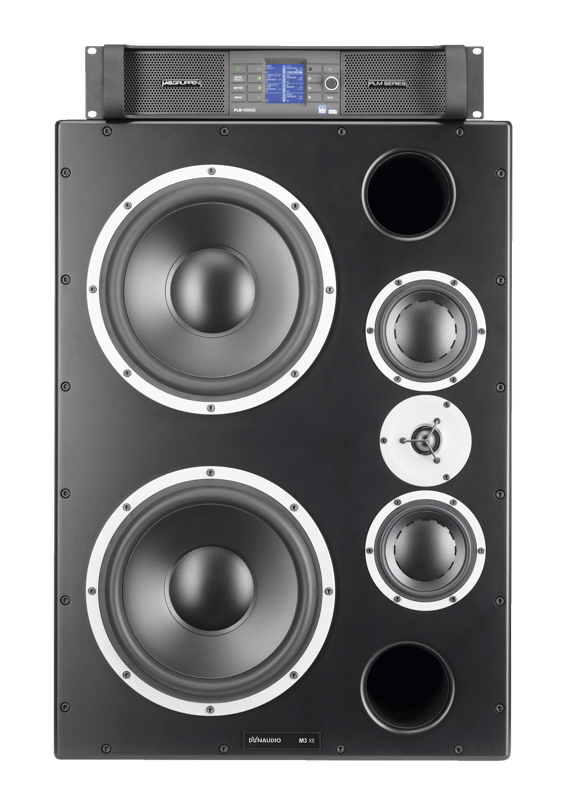

M3XE. For Mastering, Tracking and Mixing. Quad – amped.
The Dynaudio Professional M3XE monitor system that takes monitoring to a whole new level with a significant upgrade from its predecessor - the renowned M3A 3-way monitor. Each speaker is powered by a four channel PLM 12k44 amplifier from Lab.gruppen.With the newest and most pristine Dynaudio ESOTAR² driver technology, M3XE takes over where most other monitor systems give up. With unsurpassed attention to detail, underpinned by an impressive 22Hz - 21kHz frequency response and beyond 135dB SPL, M3XE leaves no room for desire in terms of resolution, range or sheer power.Different from its sister monitor M3VE, a set of M3XE's is powered by not one, but two 12k44 Lab.gruppen amplifiers, using the integrated Lake active cross-over processing as well as powering the HF, MF and dual LF woofers by the four independent amplifier channels of the 12k44.Please visit http://labgruppen.com/series/plm-series for more info.In short, M3XE surpasses any and all main monitor expectations!



M Series
Features
Handcrafted drivers
For in-wall or free standing setups
Matched with Lab.gruppen PLM 12k44 amplifier
Made in Denmark
M3XE
Specifications
- Stan Zaprzestany
- Segment Pro
- Seria Seria M
- Typ Monitor średniego pola
- Wejścia analogowe 2x Lab.gruppen PLM10000Q
- Maks. SPL (1m, para) 135
- Dolna granica częstotliwości (Hz @85 dB +/- 3 dB) 22
- Górna granica częstotliwości (kHz @ 85dB +/- 3 dB) 21
- Konstrukcja obudowy Bass reflex z przodu
- Zwrotnica 3-drożny quad-amped
- Głośnik wysokotonowy 1.1 cala Esotar2
- Głośnik średniotonowy 2x 5.5 cala MSP
- Głośnik średniotonowy/Głośniki niskotonowe 2x12 cala MSP
- Waga kg 56,2
- Szerokość mm 555
- Głębokość mm 505
- Wysokość mm 775

M Series
- Stan:
- Segment:
- Seria:
- Typ:
- Wejścia analogowe:
- Maks. SPL (1m, para):
- Dolna granica częstotliwości (Hz @85 dB +/- 3 dB):
- Górna granica częstotliwości (kHz @ 85dB +/- 3 dB):
- Konstrukcja obudowy:
- Zwrotnica:
- Głośnik wysokotonowy:
- Głośnik średniotonowy:
- Głośnik średniotonowy/Głośniki niskotonowe:
- Waga kg:
- Szerokość mm:
- Głębokość mm:
- Wysokość mm:
